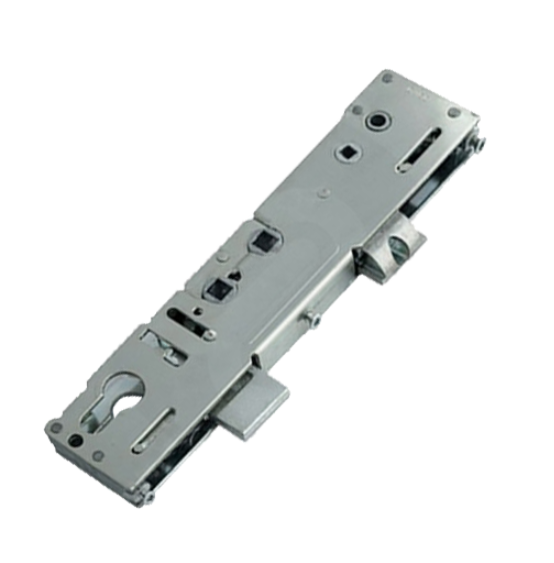

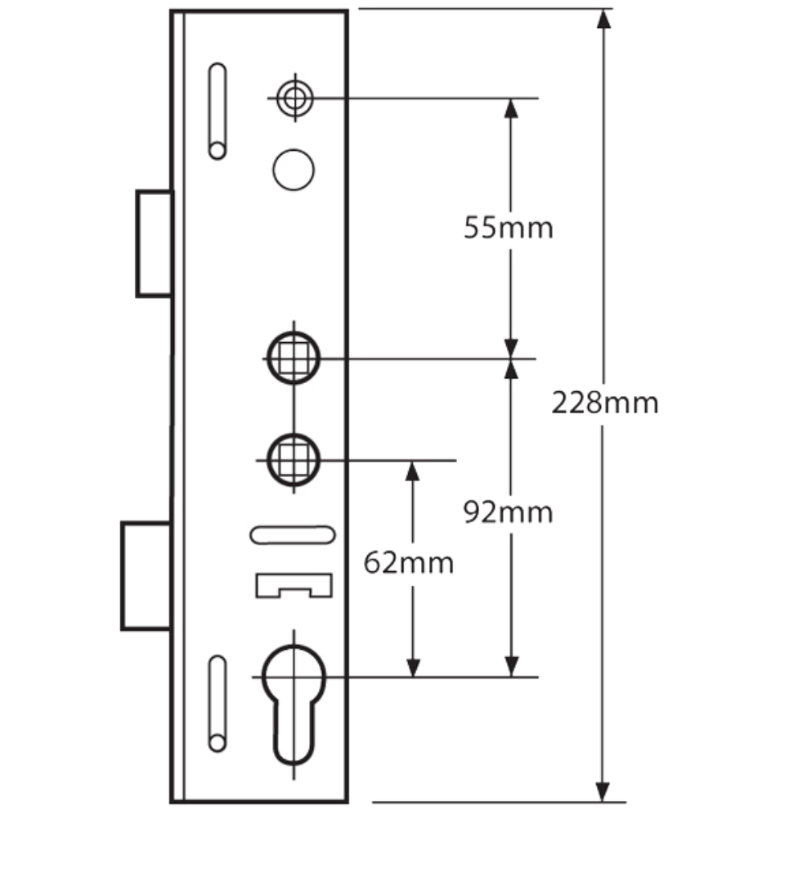

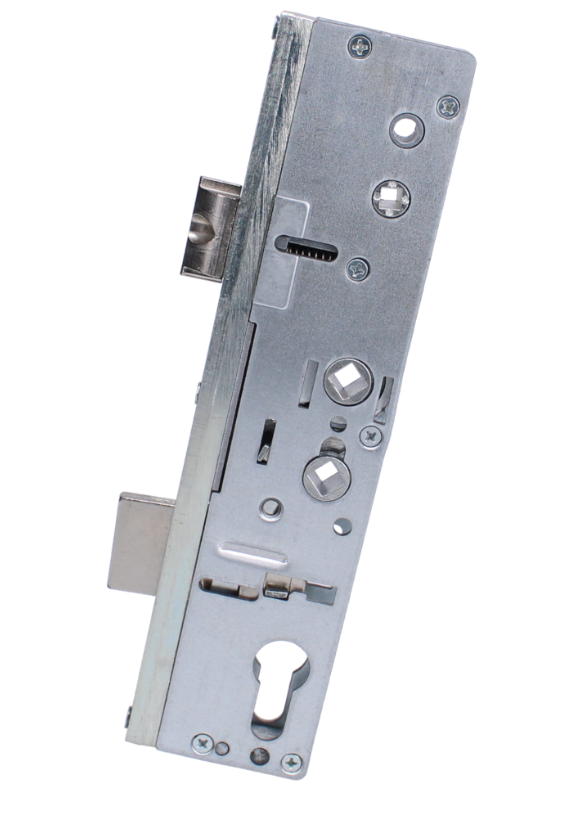

The Lockmaster Type Lever Operated Latch & Deadbolt Twin Spindle Gearbox has a 35mm backset with 92mm and 62mm centres. It is a twin spindle latch and deadbolt centre case with a 228mm case height and a 47mm case width.
This gearbox is a direct replacement for the Lockmaster latch and deadbolt centre case, designed for use on UPVC and composite doors with a twin spindle setup and Euro profile compatibility.
It is an ideal solution when the centre case gearbox is the only component that needs replacing within the locking mechanism. The gearbox is reversible and therefore suitable for both left handed and right handed applications.
Handing
The latch can be reversed by removing the screw in the latch, taking the latch out, flipping it to the opposite hand, and refitting the screw.
Operation
Locking Method ? A: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push the lever down.
Features
Reversible to suit both left handed and right handed applications
Twin spindle
Centre gearbox only
Euro profile lock case
To suit Lockmaster
Latch & deadbolt
